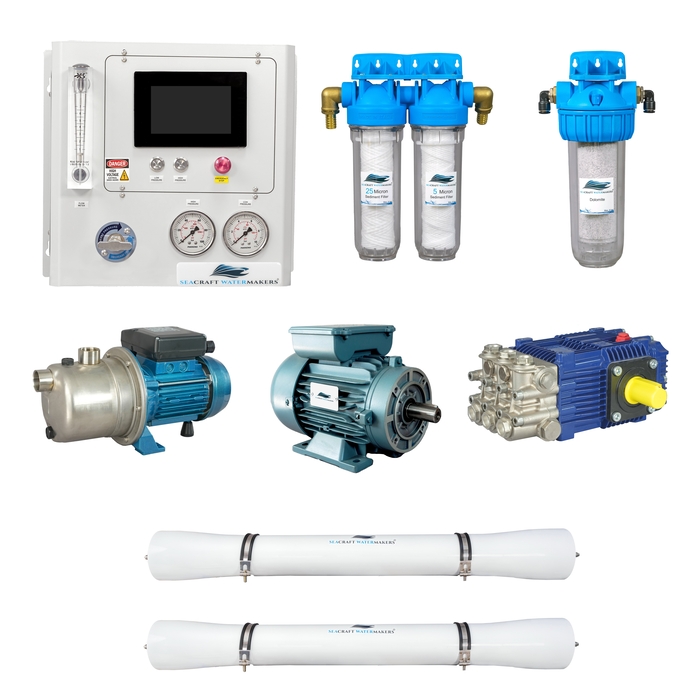

SCW-150 PRO MODULAR
Target Vessel: 14–20m motorboat, large sailboat, gulet
Capacity: 150 L/hour
Power: 230V / 50Hz AC
Which product is right for you?
SMART CONTROL & ADVANCED USER INTERFACE
The 5-inch touchscreen panel offers an intuitive and user-friendly experience, enabling effortless control and management of the system.
COMPLETE CONTROL WITH ADJUSTABLE OPERATING TIME
Customize the operating time to suit your requirements. The system operates precisely when you need it and for as long as you choose, giving you complete control and flexibility.
- Digital and analog pressure monitoring
- Water production indicator
- Water quality indicator
- Automatic backwash
- Adjustable backwash duration
- Adjustable operating time
STATE-OF-THE-ART SEAWATER SENSORS FOR COMPLETE PROTECTION

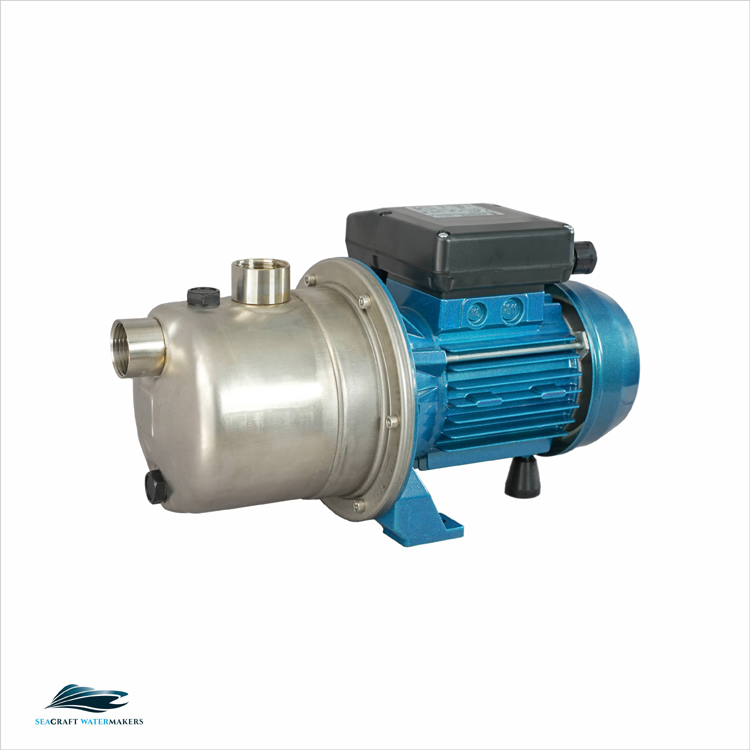

- Low pressure protection
- High pressure protection
- Automatic salinity rejection
- Operational safety system (if a hose failure, membrane vessel damage, or any comparable malfunction occurs during operation, the system automatically stops, preventing water ingress and safeguarding the vessel against flooding.)
COMPACT, ERGONOMIC AND DURABLE MODULAR DESIGN FOR EVERY VESSEL
Crafted from stainless steel, our ergonomically designed enclosures feature a flame-retardant electrostatic powder coating that ensures superior corrosion resistance. Engineered for the toughest marine conditions, they offer outstanding durability and long-term reliability.
SOFT STARTER
SMART SOFT STARTER TECHNOLOGY: SMOOTH START-UP, MAXIMUM PROTECTION
By intelligently controlling motor start-up, the soft starter minimizes electrical and mechanical stress, resulting in smoother operation, greater reliability, improved safety, and a longer service life for the entire system.
DUAL AUTOMATION SYSTEM
DURABILITY WITHOUT LIMITS
Engineered for the toughest marine conditions, the dual automation system provides alternative control methods through both the digital touchscreen and traditional analog instruments. This redundant design guarantees maximum operational reliability and continuous water production, ensuring uninterrupted performance whenever it matters most.
| MODEL | SCW-150 PRO MODULAR |
|---|---|
| VOLT | 230/50 hz |
| CURRENT | 12.3 A |
| POWER | 2.2 kw |

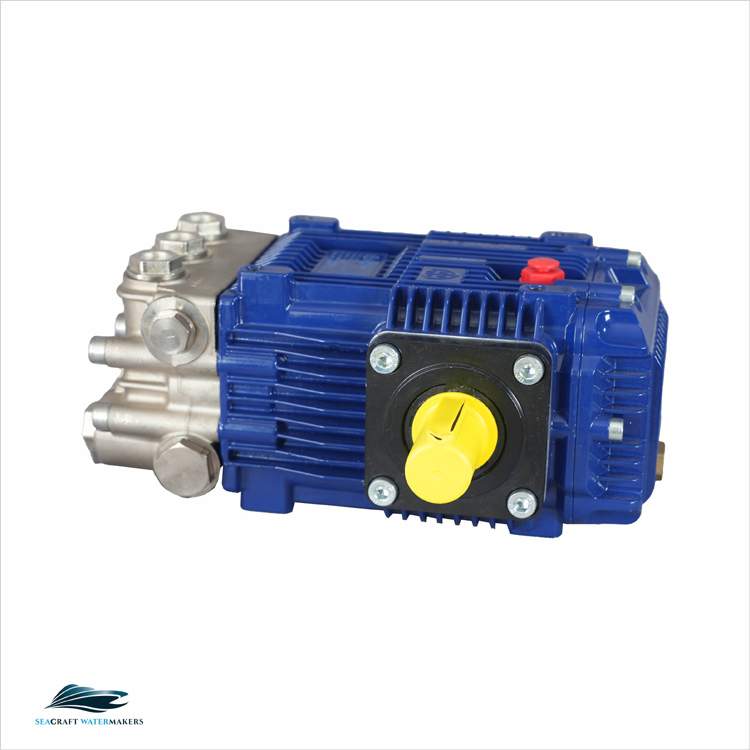

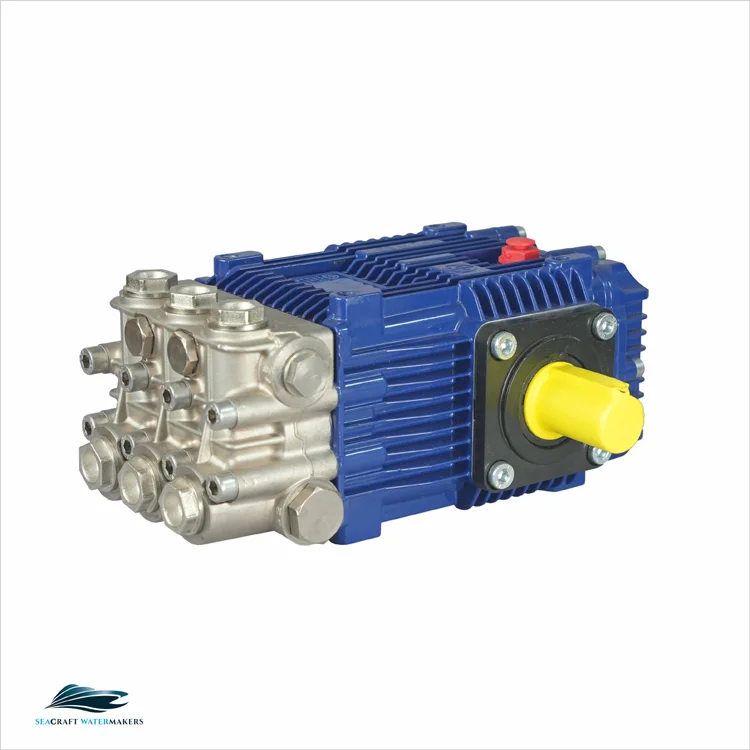

| OPERATING PRESSURE | 55 Bar |
| PRODUCTION CAPACITY | 150 Lt/H |
| DAILY PRODUCTION CAPACITY | 3600 Lt/D |
| SEA WATER INLET | 3/4” |
| TANK INLET | 10 mm |
| WASTE WATER | 12 mm |

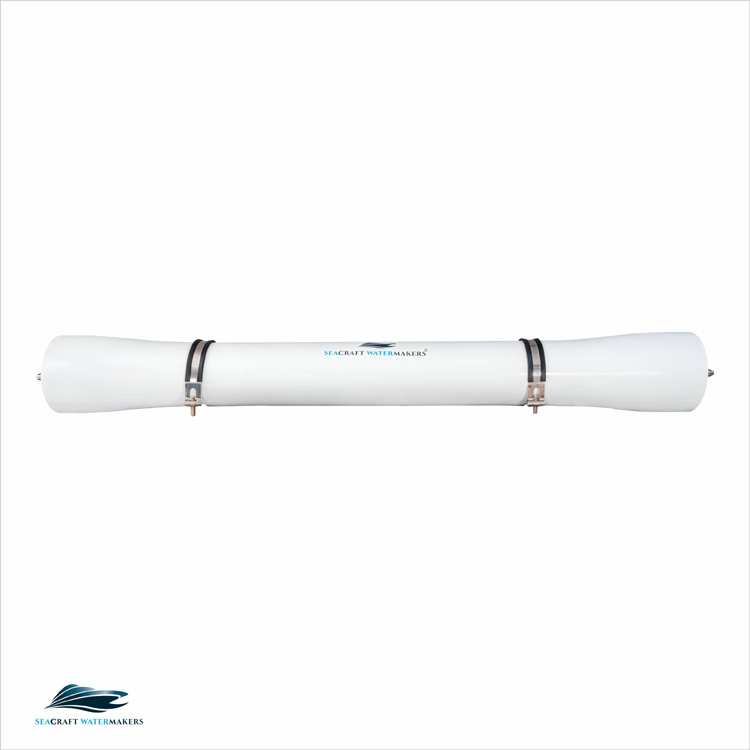

| MEMBRANE DIMENSION | 4040*1 |
| CASE SIZE (COMPACT) | 1350mm * 500mm * 360mm ( Length * Height * Depth ) |
| CASE SIZE (MODULAR) | 400mm * 350mm * 165mm ( Length * Height * Depth ) |
| WEIGHT | 68.5 kg |

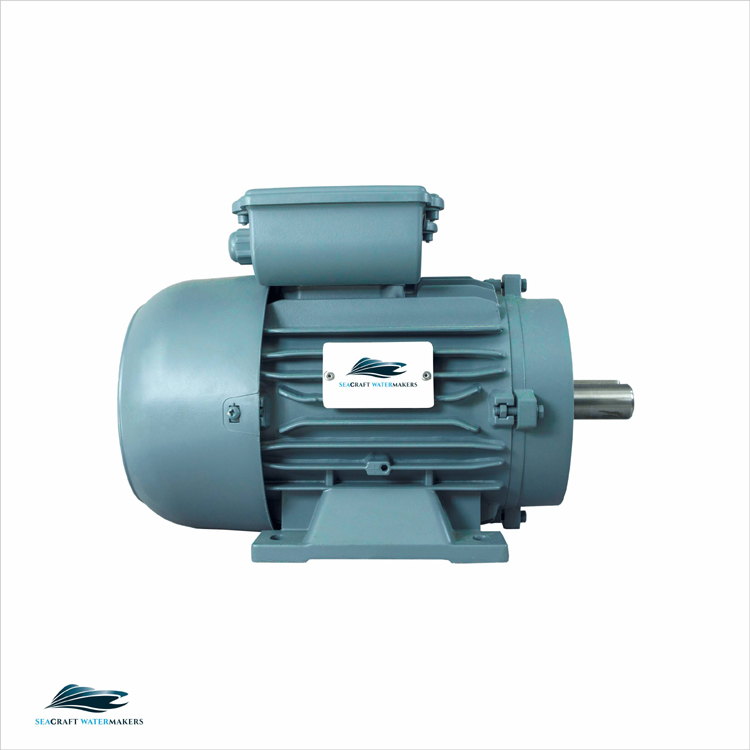

| ENGINE SPEED | 1450 rpm |
| SOUND LEVEL | 75 Db |
| MODEL | SCW-150 PRO MODULAR |
|---|---|
| PRESSURE MONITORING | ANALOGUE PRESSURE INDICATOR / 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| WATER PRODUCTION CAPACITY MONITORING | ANALOGUE FLOWMETER / 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| WATER PRODUCTION QUALITY MONITORING | 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| DEVICE WORKING HOUR INDICATOR | 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| SOFT STARTER | Thesoftstarterused in oursystemslimitsthemotor’sstartingcurrent in a controlledmanner, preventingsuddenloads; thusreducingstress on theelectricalsystem, extendingequipmentlifespan, andensuring safer andmoreefficientoperation. |
| Thereverseflushing | Thereverseflushing (autoflush) featureintegratedintothedevice can be scheduledbytheuserorcompletelydisabled, optimizingmembranecleaningtoenhancesystemperformanceandextenditslifespan. |
| Automatic Brine Discharge | Thesystemcontinuouslymonitorsthesalinity of theproducedwater; ifthevalue is not withinacceptablelimits, it automaticallydischargesthewateroverboardvia a solenoidvalve. Oncethedesiredquality is reached, it safelydirectsthefreshwatertothevessel’swater tank. |

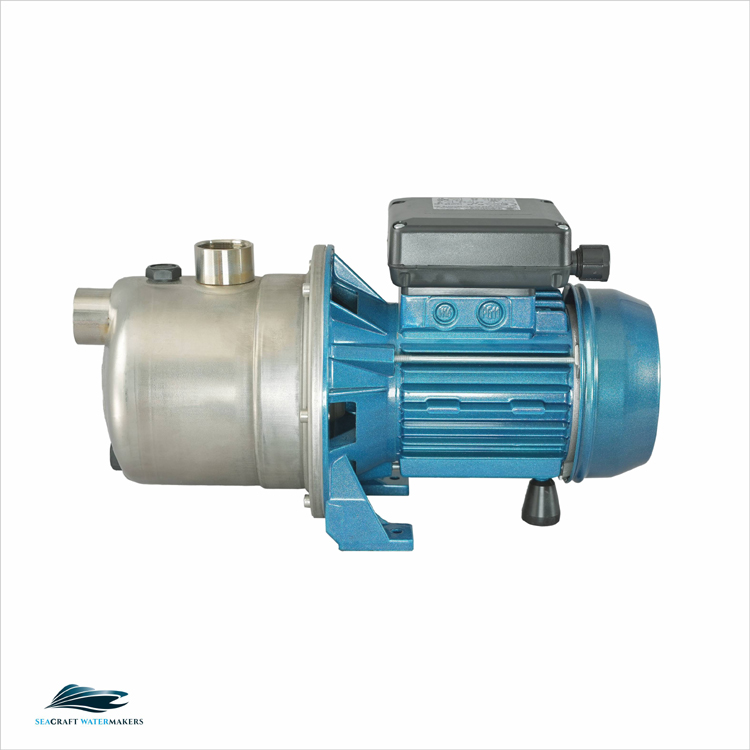

| LOW PRESSURE PROTECTION | WHEN THE LOW-PRESSURE PUMP IS ACTIVATED, IF THE REQUIRED PRESSURE VALUE IS NOT DETECTED WITHIN 30 SECONDS, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT ANY DAMAGE TO THE LOW-PRESSURE PUMP. IT ALSO TRIGGERS A LOW-PRESSURE ALARM. THE DEVICE CANNOT BE REACTIVATED UNTIL THE ALARM IS RESET. |
| HIGH PRESSURE PROTECTION | IF THE DEVICE'S HIGH-PRESSURE EXCEEDS 65 BAR OR IF THE HIGH-PRESSURE VALUE SUDDENLY DROPS WHILE THE DEVICE IS OPERATING (SUCH AS HOSE RUPTURE, ETC.), THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT FLOODING OF THE AREA WHERE THE DEVICE IS LOCATED. IT TRIGGERS A HIGH-PRESSURE ALARM AND CANNOT BE REACTIVATED UNTIL THE ALARM IS RESET. |
| DUAL AUTOMATION SYSTEM | THANKS TO THE DUAL AUTOMATION SYSTEM, YOUR DEVICE IS EQUIPPED WITH AN ELECTRONIC SYSTEM THAT ALLOWS MANUAL OPERATION THROUGH THE CONTROL PANEL IN THE EVENT OF A MALFUNCTION. THIS MEANS THAT EVEN IF THERE IS AN ELECTRONİC FAILURE, YOU WILL STILL BE ABLE TO MEET YOUR WATER NEEDS UNTIL THE TECHNICAL SERVICE RESOLVES THE ISSUE. |
| REMOTE CONTROL 5’’ TOUCHSCREEN DIGITAL DISPLAY OPTIONAL | TO MAKE IT EASIER FOR YOU TO CONTROL THE DEVICE, A REMOTE CONTROL SCREEN CAN BE INSTALLED ON THE BOAT WHEREVER YOU WANT. THROUGH THE SCREEN, YOU CAN PERFORM DEVICE POWER ON/OFF AND MONITOR TECHNICAL DATA OF THE DEVICE. |
