SCW- 1000 PRO MODULAR
Target Vessel: Large commercial vessel, gulet fleet, fishing boat
Capacity: 1000 L/hour
Power: 380V / 50Hz — 440V / 60Hz AC
Which product is right for you?
HIGH-CAPACITY SOLUTION FOR FRESHWATER-SCARCE COASTAL AREAS, YACHTS, AND VESSELS WITH HIGH WATER DEMAND
COMPLETE CONTROL WITH ADJUSTABLE OPERATING TIME
Customize the operating time to suit your requirements. The system operates precisely when you need it and for as long as you choose, giving you complete control and flexibility.
- Digital and analog pressure monitoring
- Water production indicator
- Water quality indicator
- Automatic backwash
- Adjustable backwash duration
- Adjustable operating time
STATE-OF-THE-ART SEAWATER SENSORS FOR COMPLETE PROTECTION
- Low pressure protection
- High pressure protection
- Automatic salinity rejection
- Operational safety system (if a hose failure, membrane vessel damage, or any comparable malfunction occurs during operation, the system automatically stops, preventing water ingress and safeguarding the vessel against flooding.)
ROBUST DESIGN
Manufactured from stainless steel, our ergonomically designed enclosures are protected by a flame-retardant electrostatic powder coating, delivering exceptional corrosion resistance. Built to endure the toughest marine conditions, they offer outstanding durability and long service life.
SOFT STARTER
SMART SOFT STARTER TECHNOLOGY: SMOOTH START-UP, MAXIMUM PROTECTION
By intelligently controlling motor start-up, the soft starter minimizes electrical and mechanical stress, resulting in smoother operation, greater reliability, improved safety, and a longer service life for the entire system.
| MODEL | SCW- 1000 PRO MODULAR |
|---|---|
| VOLTAGE | 380V/50 Hz – 440V/60 Hz |
| CURRENT | 13A |
| POWER | 4 kW |
| OPERATING PRESSURE | 55 Bar |
| PRODUCTION CAPACITY | 500 Lt/S |
| DAILY PRODUCTION CAP. | 12000 Lt/G |
| SEA WATER INLET | 1-1/4’’ |
| TANK INLET | 1/2’’ |
| WASTE WATER | 1/2’’ |

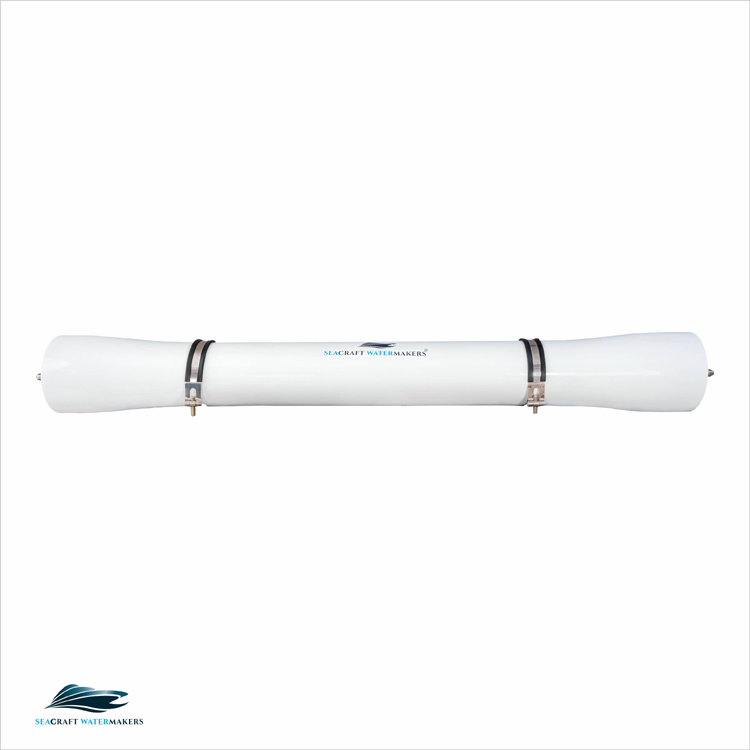

| MEMBRANE SIZE | 8040*1 |
| CASE SIZE (L*H*D) | 610* 350* 360 (Length*Height*Depth) |
| WEIGHT | 300 kg |

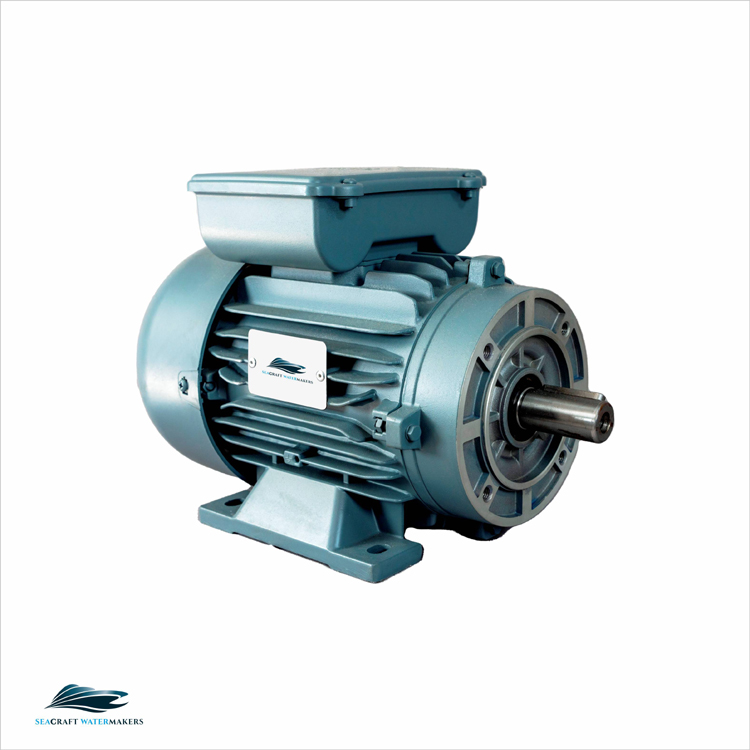

| MOTOR SPEED | 1000 rpm |
| SOUND LEVEL | 75 dB |
| MODEL | SCW- 1000 PRO MODULAR |
|---|---|

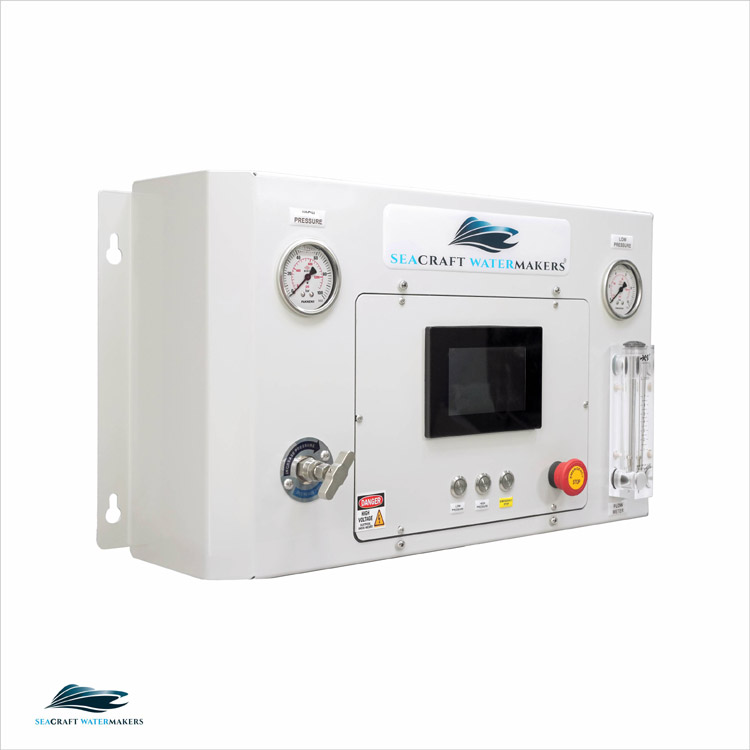

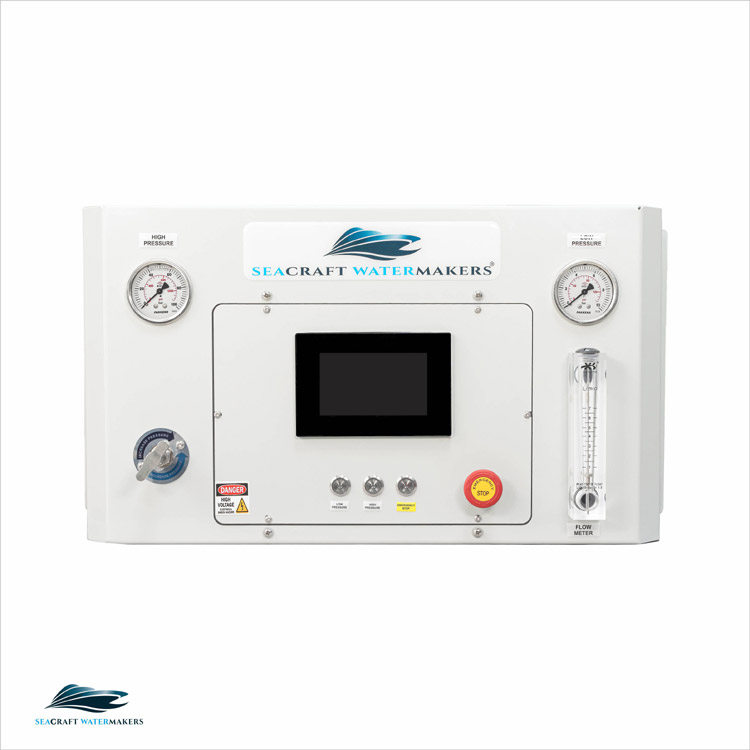

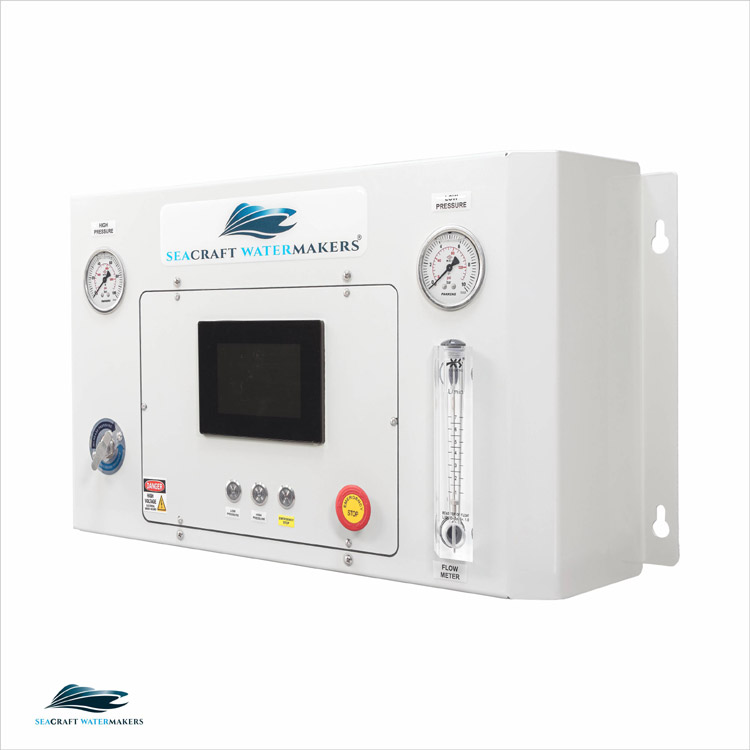

| PRESSURE MONITORING | ANALOG PRESSURE GAUGES / 5’’ TOUCH SCREEN DIGITAL DISPLAY |
| WATER PRODUCTION CAPACITY MONITORING | FLOWMETER / 5’’ TOUCH SCREEN DIGITAL DISPLAY |
| WATER PRODUCTION QUALITY MONITORING | 5’’ TOUCH SCREEN DIGITAL DISPLAY |
| DEVICE WORKING HOUR INDICATOR | 5’’ TOUCH SCREEN DIGITAL DISPLAY |
| SOFT STARTER | Thesoftstarterused in oursystemslimitsthemotor’sstartingcurrent in a controlledmanner, preventingsuddenloads; thusreducingstress on theelectricalsystem, extendingequipmentlifespan, andensuring safer andmoreefficientoperation. |
| Thereverseflushing | Thereverseflushing (autoflush) featureintegratedintothedevice can be scheduledbytheuserorcompletelydisabled, optimizingmembranecleaningtoenhancesystemperformanceandextenditslifespan. |
| Automatic Brine Discharge | Thesystemcontinuouslymonitorsthesalinity of theproducedwater; ifthevalue is not withinacceptablelimits, it automaticallydischargesthewateroverboardvia a solenoidvalve. Oncethedesiredquality is reached, it safelydirectsthefreshwatertothevessel’swater tank. |

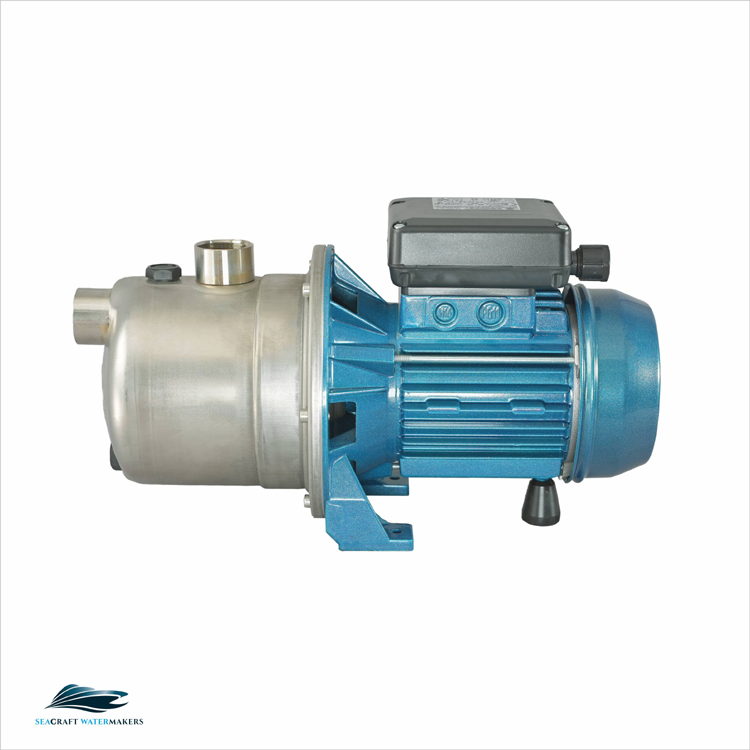

| LOW PRESSURE PROTECTION | IF THE REQUIRED PRESSURE VALUE IS NOT OBSERVED WITHIN 30 SECONDS WHEN THE LOW-PRESSURE PUMP IS ACTIVATED, THE DEVICE SHUTS DOWN TO PREVENT DAMAGE TO THE LOW-PRESSURE PUMP. IT DISPLAYS A LOW PRESSURE ALARM ON THE DIGITAL SCREEN. |
| HIGH PRESSURE PROTECTION | WHEN THE DEVICE PRESSURE EXCEEDS 65 BAR, THE DEVICE AUTOMATICALLY SHUTS DOWN FOR PROTECTION. IT GIVES A HIGH-PRESSURE ALARM. IF THE HIGH PRESSURE VALUE SUDDENLY DROPS WHILE THE DEVICE IS OPERATING (SUCH AS HOSE BREAKAGE, ETC.), IT SHUTS DOWN TO PREVENT FLOODING IN THE LOCATION OF THE DEVICE. IT GIVES A HIGH-PRESSURE ALARM. |
| DUAL AUTOMATION SYSTEM | WITH THE DUAL AUTOMATION SYSTEM, YOUR DEVICE CAN BE MANUALLY USED THROUGH THE CONTROL PANEL IN CASE OF A FAILURE IN THE EXISTING ELECTRONIC SYSTEM. THIS WAY, YOUR DEVICE WILL CONTINUE TO MEET THE WATER NEED UNTIL THE TECHNICAL SERVICE FIXES THE ELECTRONIC FAULT. |
| REMOTE CONTROL 5’’ TOUCH SCREEN DIGITAL DISPLAY (OPTIONAL) | TO MAKE IT EASIER FOR YOU TO CONTROL THE DEVICE, A REMOTE CONTROL SCREEN CAN BE ATTACHED TO ANY DESIRED LOCATION ON THE BOAT. IT ALLOWS TURNING THE DEVICE ON/OFF AND MONITORING TECHNICAL DATA THROUGH THE SCREEN. |
