SCW-30 Watermakers
Target Vessel: Small yacht, sailboat (≤10m), RIB, liveaboard
Capacity: 30 L/hour
Power: 12V DC / 24V DC
Which product is right for you?

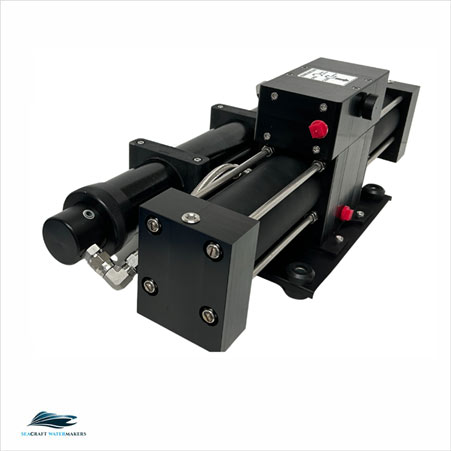

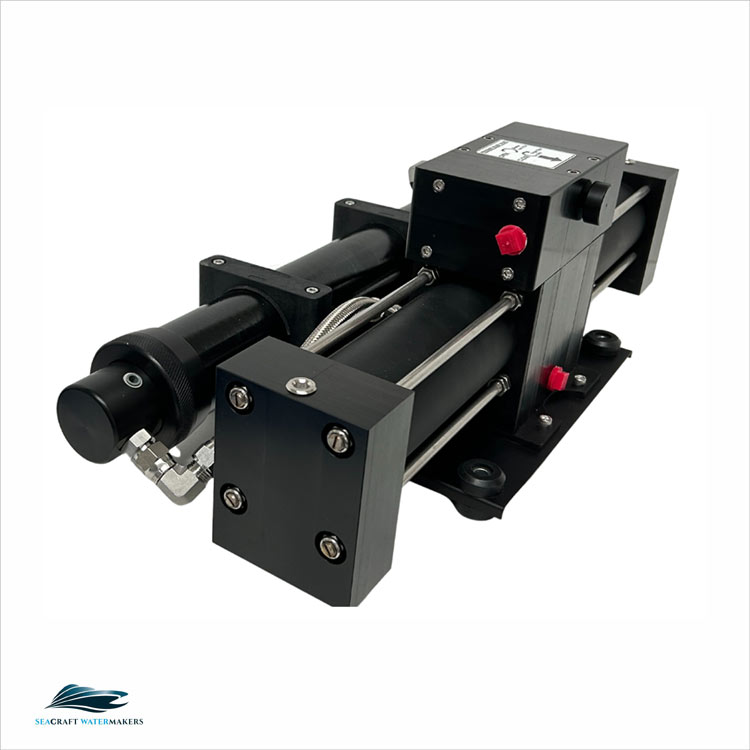

ADVANCED NEXT-GENERATION CLARK PUMP
Powered by the latest hydraulically assisted Clark Pump intensifier and energy recovery technology, our system sets new industry benchmarks for efficiency, performance, and energy savings.
SUPERIOR PERFORMANCE THROUGH INTELLIGENT ENERGY RECOVERY
Equipped with the latest hydraulically assisted Clark Pump intensifier and an integrated energy recovery system, the SCW-30 delivers exceptional efficiency and performance, raising industry standards to a new level. Its compact design and optimized operating technology make it the perfect choice for installations where space is limited but maximum efficiency is required.
COMPACT SIZE, OUTSTANDING PERFORMANCE
The SCW-30 combines lightweight construction, elegant minimalist styling, and an ultra-compact footprint to deliver exceptional versatility. Its easy installation and convenient maintenance ensure a seamless user experience, while its proven reliability makes it a trusted choice. Furthermore, the integrated diaphragm feed pump optimizes system pressure, maximizing efficiency and overall performance.
PRODUCE THE SOURCE OF LIFE WITH RENEWABLE ENERGY
Thanks to its remarkably low power consumption, the system can be operated confidently using renewable energy sources such as solar panels, wind turbines, or marine alternators. Furthermore, the advanced Clark Pump features an extended-cylinder design that ensures noticeably quieter performance and enhanced onboard comfort.
| MODEL | SCW-30 Watermakers |
|---|---|
| VOLTAGE | 12V DC |
| CURRENT | 8–10 AMPS for 12V DC (15A fuse) / 4–5 AMPS for 24V DC (7.5A fuse) |
| POWER | 120 WATT |
| OPERATING PRESSURE | 45/69 Bar |
| PRODUCTION CAPACITY | 30 L/H |
| DAILY PRODUCTION CAPACITY | 720 L/H |
| SEAWATER INLET | 3/4” |
| TANK INLET | 8 mm |
| WASTE WATER OUTLET | 12 mm |
| MEMBRANE SIZE | 2521*1 |
| CLARK PUMP DIMENSIONS | 30,7 cm - 63 cm – 21,3 cm (14 kg) |

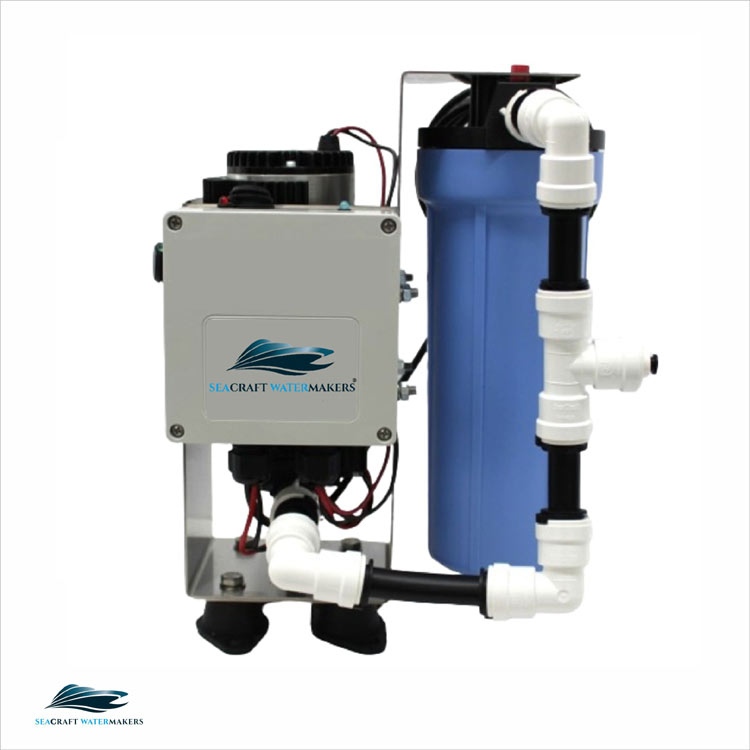

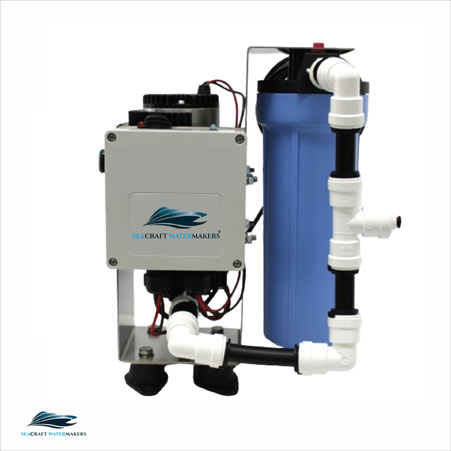

| FEED PUMP UNIT DIMENSIONS | 24,7 cm – 17 cm – 34,5 cm (6,6 kg) |
| NOISE LEVEL | 45-55 Db |
| MODEL | SCW-30 Watermakers |
|---|---|
| WATER PRODUCTION CAPACITY MONITORING | Analog flowmeter |
| WATER QUALITY MONITORING | Product water test outlet on the control panel |
| FLUSHING SYSTEM | Automatic flushing and timed re-flushing |
